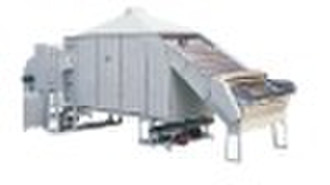

Drying machine of reverse turning bed type

Main applications Drying machine of reverse turning bed type is used for drying herbs,aquatic products and agricultural and ideline products. The heat sources can be coal,oil,steam. Main features It is automatic material feeding,continuous operation, stepless governing and high efficiency. This according with the requirement of GMP. Working principle The generated clean hot air is distriouted to the multilayer flaps in the drying box. The material is fed into the box by conveying device. It moves from up downwards and dries by transferning and radiating from the hot air. Main technical parameters Item No. Drying area () Capacity (kg/h) Power (kw) energy consumption Meas. (mm) Weight (kg) Use oil (kg/h) Steam consumption (kg/h) HFL-16 16 80-160 5.25 ≤8 ≤300 8000×1900×2050 3500 HFL-25 25 130-280 6.25 ≤12 ≤400 8000×2350×2150 4000
